EPD-20-RO

Description: Heat and chemical resistant epoxy disk

Transponder: RF/64, Manchester, 64 bit read only, 40 bit serial number

Frequency: 125 kHz ±6 kHz

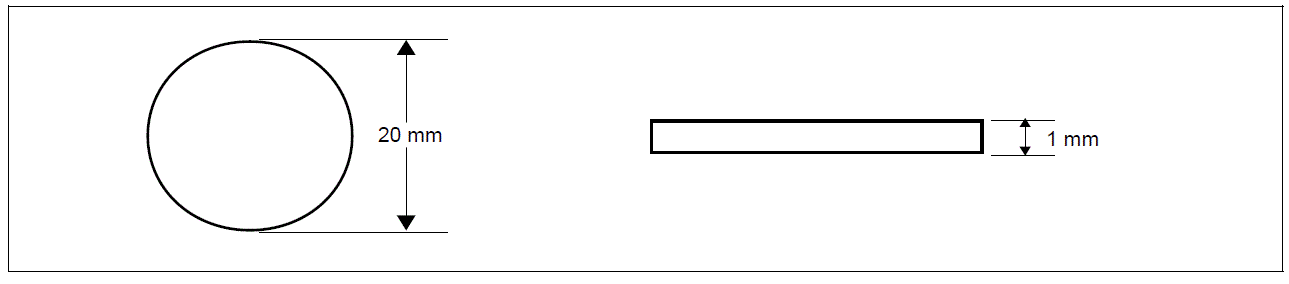

Size: Diameter: 20 mm ±0.5 mm, Thickness: 1.0 mm ±0.3 mm

Material: Glass fiber reinforced epoxy laminate

Color: Black

Weight: 0.7 g

Protection:

• Waterproof according to IP66
• UV radiation (100mW/cm2)
• Axial compression: 800 N
• Radial compression: 750 N
• Vibration: 20-2000 Hz, 20 g 3 axes 2h (IEC68-2-6)
• Shock: 40 g, 6ms, 6axes, 2000 times (IEC 68-2-29)

Temperature: Operating: -20°C to +85°C; Storage: -20°C to +130°C (up to 1000 hours), +200°C up to 2 minutes

Read Range: Reader dependent (10+ cm with TR-RO1-WM)

Read Speed: 1,953 bits per second (35 ms read time typical)

Part Number: EPD-20-RO
