Ionetrics Annotator Jr ( Discontinued )

 IRIG Driven Event Time Stamps

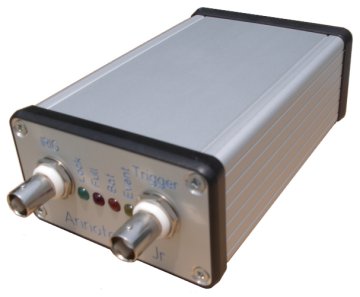

Annotator Jr

 Features

  • Hardware event triggers
  • Decodes modulated IRIG-B including BCD time of day, BCD year, straight binary seconds, and control function bits as per IRIG 200-04 specification
  • Flexible event triggering options
    • Rising or falling edge
    • Switch closure or opening
    • Trigger input compatible with LVTTL, TTL, and CMOS outputs
    • Arbitrary analog trigger inputs can be accommodated as well
  • Powered directly over USB, by an AC/DC adapter, or an internal battery
  • Continues to operate even when detached from a USB port
  • 100 hour battery life without recharging (3 week battery life in low power mode)
  • Generates IRIG time stamps without complicated and expensive PCI based time code boards
  • Decodes IRIG time and transmits over USB or records to on-board memory
  • Transmits current time and event times over USB to user applications
  • Records time tags for one shot events or high speed multiple events
    • Supports event rates up to 5 kHz when recording to RAM (capacity for up to 500 events)
    • Supports event rates up to 1 kHz when recording to flash memory (capacity for up to 40,000 events)
    • Supports event rates up to 250 Hz when streaming across USB
  • Can be used as a generic, flexible remote start interface for end user applications
  • Operates in a free running mode in the absence of an IRIG input (0.1 millisecond per hour maximum time drift)
  • Event time accuracy of ±50 microseconds

 Inputs

  • IRIG-B time code (modulated)
  • Event trigger (TTL, LVTTL, Switch opening and closure)

 Outputs

  • Event trigger time stamps

 Software Support

  • Includes AJ application software with easy to use GUI based interface
    • Provides simple dialogs for configuring the hardware
    • Includes functions for downloading event times from RAM or flash
    • Displays recorded event times in table format
    • Saves downloaded event times as text files or Excel spreadsheets
  • Optional Java SDK (includes AJ source)
