Ionetrics Annotator CL Full

CameraLink Data Annotation and Acquisition

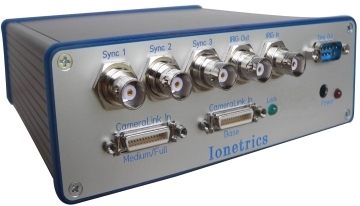

Annotator CL

 Features

  • Ideal for instruments with meta-data annotation and time tagging needs
    • high speed cameras
    • spectrometers
    • radiometers
  • Common CameraLink output format for all input types
  • Works with Base, Medium, and Full Camera Link inputs
  • Annotation data injected directly into the digital data stream:
    • IRIG referenced time stamp with flexible triggering options
    • 32-bit scan or frame counter
    • User defined ancillary, meta data, and status bits
  • IRIG Time Code Generator
  • CameraLink Repeater
  • CameraLink Video Splitter
  • CameraLink Signal Breakout Box
  • FPGA based real-time clock
    • Synchronized to modulated IRIG-B input if present
    • Operates in a free running mode in the absence of an IRIG input
    • Event time accuracy of ±10 microseconds



Inputs

  • CameraLink data stream
  • Modulated IRIG-B time code
  • Remote Start

 Outputs

  • Master CameraLink Annotated Data Stream
  • Slave CameraLink Annotated Data Stream
  • Time Out (RS 232: 1 pulse per second)
  • Modulated IRIG-B time code
  • Sync 1 (User selectable data sync)
  • Sync 2 (User selectable data sync)
  • Sync 3 (User selectable data sync)

 Software Support

  • Can function standalone with user supplied software
  • Works with existing frame grabber with no software rewrite
  • Software toolkit available for end user customization

 USB Control Port


libAnnotatorComm
Unified communications library for the Annotator line of products

Annotator CL Detailed Description
Complete feature callout for the Annotator CL
