Ionetrics Annotator CL RM

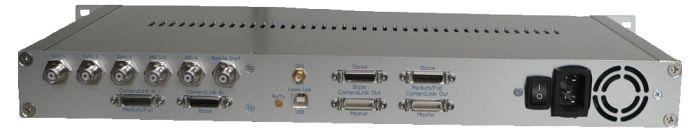

1U 19" Rackmount CameraLink Annotator

Annotator CL Annotator CL

Features

  • Ideal for instruments with meta-data annotation and time tagging needs
    • high speed cameras
    • spectrometers
    • radiometers
  • Common CameraLink output format for all input types
  • Works with Base, Medium, and Full Camera Link inputs
  • Annotation data injected directly into the digital data stream:
    • IRIG referenced time stamp with flexible triggering options
    • GPS Synchronized Precision Time Stamps
    • 32-bit scan or frame counter
    • User defined ancillary, meta data, and status bits
  • IRIG Time Code Generator
  • CameraLink Repeater
  • CameraLink Video Splitter
  • CameraLink Signal Breakout Box
  • FPGA based real-time clock
    • Synchronized to modulated IRIG-B input if present
    • Synchronized to percision time generated by u-Blox GPS chip (*)
    • Operates in a free running mode in the absence of an IRIG input
    • Event time accuracy of ±1 microseconds
  • LCD Display:
    • Current time synced to either synced to IRIG or GPS time.
    • Discplay Latitude, Longitude, Altitude
    • Display Image Statistics
    • Control over Digital and Text Overlay Annotation
    • Manual Time Control
    • Annotation Mode Control
    • Trigger Control
    • Output Port Order Control
    • Display Firmware Version

Inputs

  • CameraLink data stream
  • Modulated IRIG-B time code
  • GPS Antenna
  • Remote Start

Outputs

  • Master CameraLink Annotated Data Stream
  • Slave CameraLink Annotated Data Stream
  • Modulated IRIG-B time code (Synchronized to GPS time)
  • Sync 1 (User selectable data sync)
  • Sync 2 (User selectable data sync)
  • Sync 3 (User selectable data sync)

Software Support

  • Can function standalone with user supplied software
  • Works with existing frame grabber with no software rewrite
  • Software toolkit available for end user customization

USB Control Port


LCD User Manual (.doc) / (.PDF)
Complete list of LCD display screens and functions

libAnnotatorComm
Unified communications library for the Annotator line of products

Annotator CL Detailed Description
Complete feature callout for the Annotator CL
